Ultra Max Thick Copper PCB(1000µm)

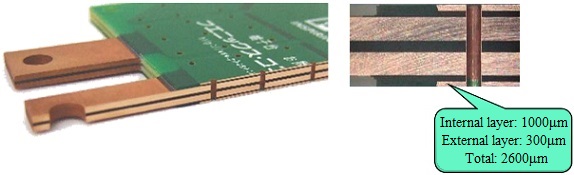

"Ultra Max Thick Copper PCB" can meet demand for more thicker copper and higher current handling. Available copper thickness is up to 1000µm.
"Ultra Max Thick Copper PCB" can handle high current over 200A.

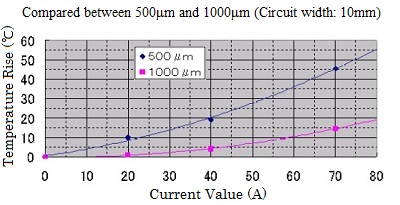

• Ultra Max Thick Copper has the highest heat dissipation among all conventional thick copper/high current handling PCB.

Number of layers	:2-4 layers

Board Thickness	:1.3-3.5mm

Others		:UL listing is completed. →Click here for UL certification.

Copper Inlay	:Available

• High voltage high current terminal board
• High Voltage Breaker
• Others
